This is my build of a TJ tub on a tube frame with a 4.0/aw4/d300. Dana 300 will be treated to an Advance Adaptors HD 32 spline rear output with 1400 series flange and parking brake assembly and the front will have a JB conversions 32 spline output with a 1410 yoke. Front axle is a Dodge D60, 3 linked and on coils, a detroit, stock inner shafts, stock spicer joints and 35 stubs. Rear axle is a 14 bolt, 4 linked on coils with stock shafts, disc brakes and welded. Both with 5.13 gears and H1's with 38.5" SX's. I have no top so I plan to build the cage so that I can use a Besttop Trektop. I also plan to build a trail rig that will be durable, can hold two adults, a couple of kids and a cooler. The tub came with a dry rotted TJ dash but was lacking the important parts so I'm thinking of going with a CJ dash and Heater, something old school to add some class.

This is my first full on build so I'm open to any suggestions.

I've read before you should start your build with the tires you want to run and believe it or not, I started the build with these:

Then I picked up a d60 and d70 I (that I ended up not using) along with a TJ tub:

Got a 14 bolt for the rear:

Collected some parts for the front axle (the small joint and stub are d44 stuff for comparison):

Then I started laying things out:

Got a few new parts as well as some beautiful help:

Finally got some fab started:
Last edited by TwoStep on Fri Sep 23, 2011 10:48 am, edited 4 times in total.
----------------------------------------------------------------------------------------------------
Nothing screams poor workmanship more than wrinkles in the duct tape.

or
ΜΟΛΩΝ ΛΑβΕ

User avatar
TwoStep
Official Club Member
Posts: 3843
Joined: Mon Oct 31, 2005 5:07 pm
Location: Winchester, KY

Re: Project "Rover"

Post by TwoStep » Sun Jan 30, 2011 10:47 pm

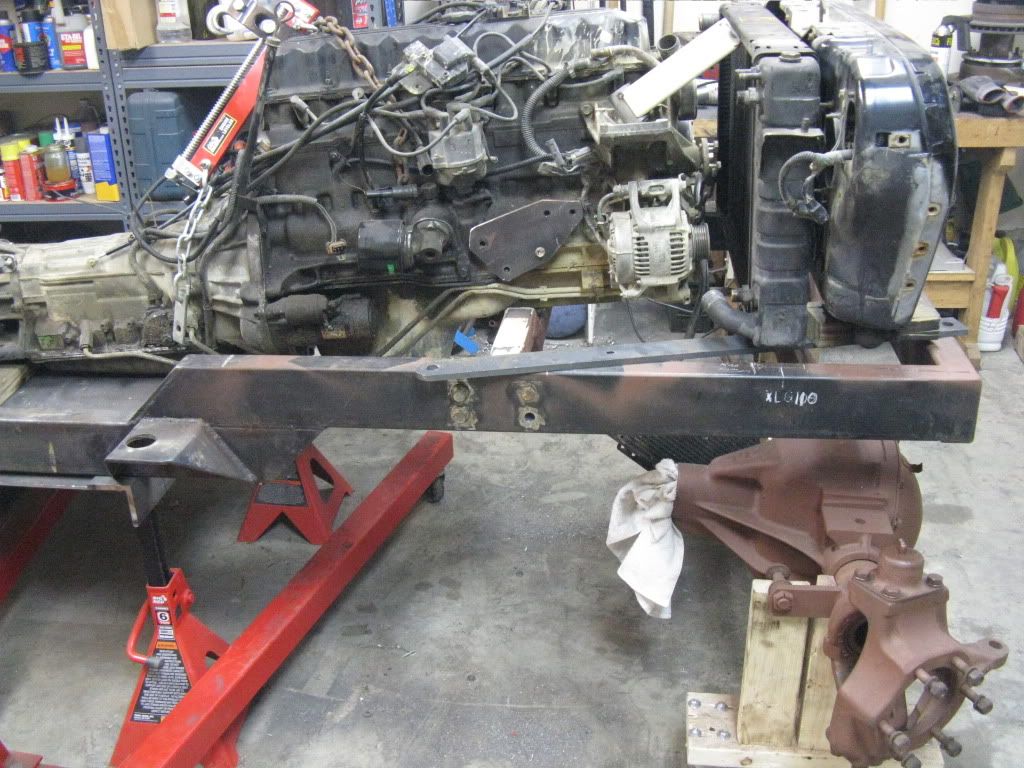

More fab:
