Re: Yoda Monster :full blown fj40 rear steer tube buggy

Post by postaldave » Sat Aug 26, 2017 10:19 am

Ahhhh so if you can get the lengths right that would be the wiser move. Didn't consider the likelihood of leaks. Boy that's a big if though.
1977 Toyota FJ40 (Yoda Monster)
1996 Jeep XJ( The @$%@$ Red Head)

http://www.facebook.com/postaldave.anderson[/color][/b]

User avatar
CJ51973
Exec Committee Member
Posts: 1610
Joined: Tue Sep 21, 2010 11:45 am
Location: Versailles, KY

Re: Yoda Monster :full blown fj40 rear steer tube buggy

Post by CJ51973 » Sat Aug 26, 2017 10:32 am

I used an old garden hose to kind of mock up and then had them made. Both of mine are the same length so I can call ahead if I bust one.


Sent from my iPhone using Tapatalk
88 YJ, 258/TF999/4:10 8.8 Ford

User avatar
TwoStep
Official Club Member
Posts: 3834
Joined: Mon Oct 31, 2005 5:07 pm
Location: Winchester, KY

Re: Yoda Monster :full blown fj40 rear steer tube buggy

Post by TwoStep » Sat Aug 26, 2017 12:58 pm

CJ51973 wrote:I used an old garden hose to kind of mock up
This^ if you go with crimped ends.

I think my post wasn't clear, actually I made all of mine with FS fittings, and for a diy'er it is a good way to go. My point is that the cost is a wash. But WHEN you end up replacing or repairing, if you have the FS fittings, you can do it when and where you are and all it costs is the hose. Leaks have never been an issue for me but I guess any fitting can leak.


Sent from my iPhone using Tapatalk
----------------------------------------------------------------------------------------------------
Nothing screams poor workmanship more than wrinkles in the duct tape.

or
ΜΟΛΩΝ ΛΑβΕ

User avatar
postaldave
Axle Breaker
Posts: 703
Joined: Sat Dec 26, 2009 11:56 pm
Location: southside lex

Re: Yoda Monster :full blown fj40 rear steer tube buggy

Post by postaldave » Sat Aug 26, 2017 10:36 pm

i like cj's idea for mock up. and after realizing i got to run 4 lines now due to a pressure relief valve i'm leaning to the crimped. even if i go that way i just one hose and two FS ends to back up my whole system on the trail.
1977 Toyota FJ40 (Yoda Monster)
1996 Jeep XJ( The @$%@$ Red Head)

http://www.facebook.com/postaldave.anderson[/color][/b]

User avatar
postaldave
Axle Breaker
Posts: 703
Joined: Sat Dec 26, 2009 11:56 pm
Location: southside lex

Re: Yoda Monster :3.8 Buick SC fj40 rear steer tube buggy

Post by postaldave » Mon Sep 11, 2017 6:42 pm

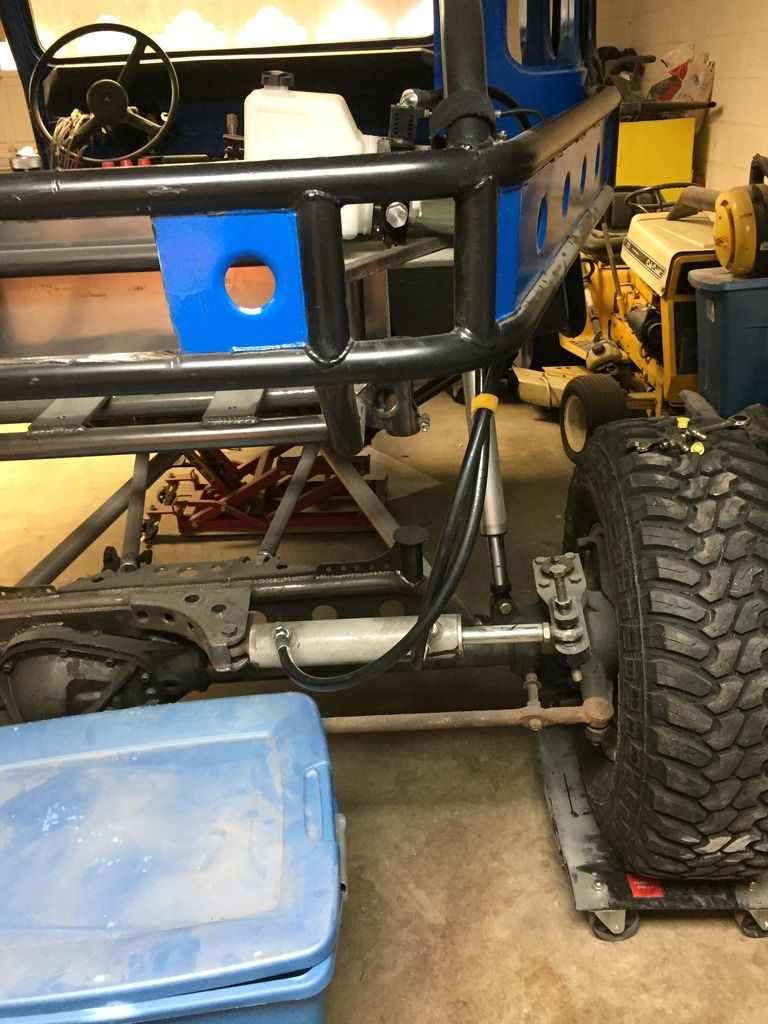

been short on time for the buggy but i'm still on it. got hoses made and hooked up tonight.
its a 12v pump going into a relief valve and then into the axle ram.


got to fab up a plate for the valve sit on next. i did buy me a new fancy welding hood. my daughter seems to like it too.


not sure i feel safe with the hoses here. might have to run them on the left side of the pump

1977 Toyota FJ40 (Yoda Monster)
1996 Jeep XJ( The @$%@$ Red Head)

http://www.facebook.com/postaldave.anderson[/color][/b]

User avatar
TwoStep
Official Club Member
Posts: 3834
Joined: Mon Oct 31, 2005 5:07 pm
Location: Winchester, KY

Re: Yoda Monster :3.8 Buick SC fj40 rear steer tube buggy

Post by TwoStep » Tue Sep 12, 2017 9:53 am

postaldave wrote:not sure i feel safe with the hoses here. might have to run them on the left side of the pump
TwoStep wrote:...run the hoses from the cylinder at least 2/3rds the way up the upper links and then up to the frame and back to the pump. Don't just run them straight up with enough slack for full droop.
It makes for long hoses but it really is the most clean and secure way to route them. Besides the hose is the cheap part of a hydraulic hose assembly.
----------------------------------------------------------------------------------------------------
Nothing screams poor workmanship more than wrinkles in the duct tape.

or
ΜΟΛΩΝ ΛΑβΕ


User avatar
postaldave
Axle Breaker
Posts: 703
Joined: Sat Dec 26, 2009 11:56 pm
Location: southside lex

Re: Yoda Monster :3.8 Buick SC fj40 rear steer tube buggy

Post by postaldave » Tue Sep 12, 2017 6:22 pm

TwoStep wrote:
postaldave wrote:not sure i feel safe with the hoses here. might have to run them on the left side of the pump
TwoStep wrote:...run the hoses from the cylinder at least 2/3rds the way up the upper links and then up to the frame and back to the pump. Don't just run them straight up with enough slack for full droop.
It makes for long hoses but it really is the most clean and secure way to route them. Besides the hose is the cheap part of a hydraulic hose assembly.

i think i might have goofed on the ram lines. i'll try over and down on the other side and see if i got enough slack. otherwise i might be buying new hoses again. crap :facepalm:
1977 Toyota FJ40 (Yoda Monster)
1996 Jeep XJ( The @$%@$ Red Head)

http://www.facebook.com/postaldave.anderson[/color][/b]

Post Reply
